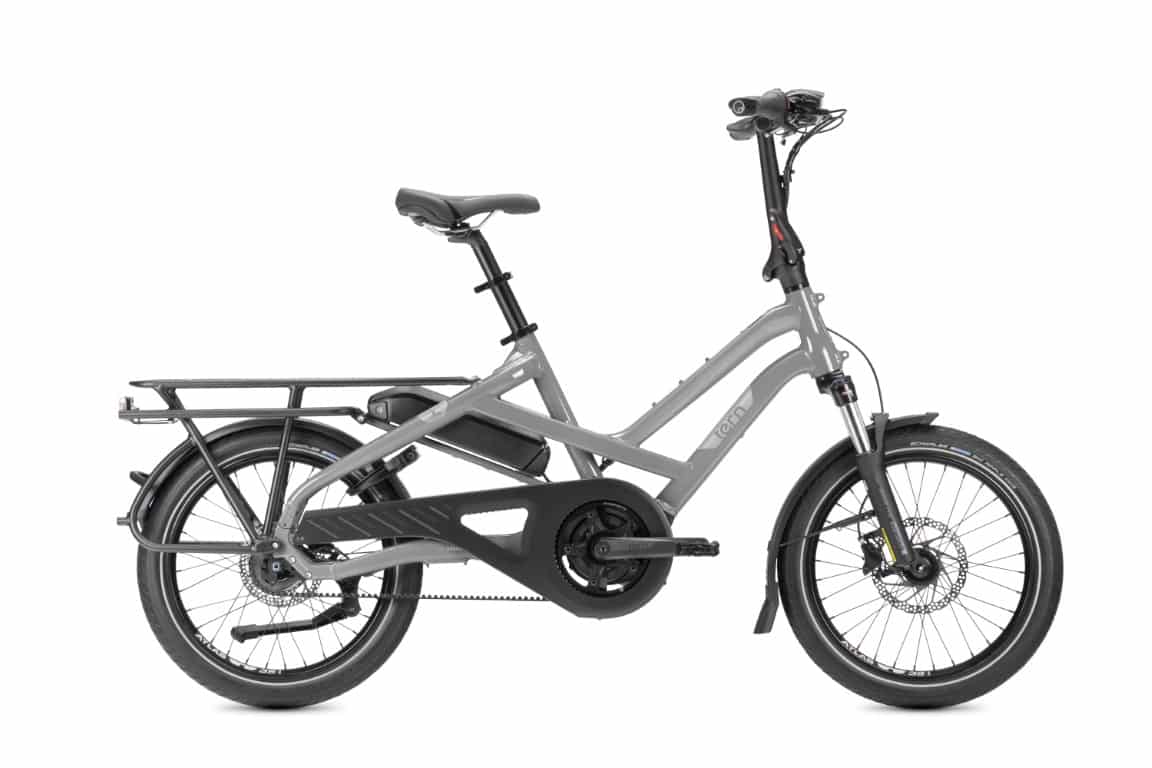

Tern HSD P5i Gen2

$4,599.00

NEW! Now in Stock

The Tern HSD is mighty but mini: It’s easy to handle, easy to share, extremely comfortable to ride, carries a whole lot of cargo—and all of this in a compact design that’s shorter than a standard bicycle.

Despite its diminutive stature, the HSD is a mid-sized cargo bike with some serious hauling capacity. With a maximum gross vehicle weight of 180 kg (397 lb) and an XL-sized Atlas H Rack, it’ll carry passengers or a week’s worth of groceries or camping equipment for the weekend. It even has a dedicated trailer mount, so adding extra cargo is a cinch.

Tern offer dozens of accessories to customize an HSD to your needs.. Carry passengers from toddlers to adults (176lbs max), pets, and cargo. Front racks rated up to 40lb available.

Store your HSD upright to minimize its foot print, and transport it in a motor vehicle with ease using the handlebar’s fold-flat technology.

The P5i is the most accessible belt drive cargo bike we sell, offering intuitive and low maintenance shifting – perfect for a busy life in the ocean air. Never have to lube your chain again! Tackle all your errands and escapades with a Bosch Performance motor, now with Smart System connectivity.

  • Durable and intuitive Shimano® Internal Shifting
  • Belt Drive by Gates®
  • Bosch® Performance Smart System 75NM
  • Bosch Connect Module* Compatible (optional bike alarm and tracking)
  • 545Wh battery for a range of up to 110 km (69 mi)
  • Custom Suntour suspension fork
  • Abus® keyed-alike frame lock
  • Fits riders from 150 to 195 cm (4’11” – 6’5”)
  • Fits one Thule® Yepp Maxi, Yepp Nexxt Maxi, or Bobike® GO Maxi child seat—no adapters needed

NOTE: Accessory / Lifestyle / Detail Pictures may be from other HSD Gen2 bikes in colors unavailable for this specific model.



Please Call for Details:

831-621-2309

Contact Us by Email



The Current eBikes Difference:

Caring for you differently than an internet discounter or big chain…

Current-eBikes-Difference

Categories: , , Tags: , , , , , , , ,

Description

AVAILABLE COLORS:
Sea Breeze, Dragon Fruit
WHEEL SIZE:
20″ wheels
SUGGESTED RIDER HEIGHT:
150 – 195 cm (4’11” – 6’5″)
MAX GROSS VEHICLE WEIGHT:
180 kg (397 lbs)
MAX RIDER WEIGHT:
120 kg. (264 lbs.)
MAX REAR RACK / PASSENGER WEIGHT:
80KG (176 lbs)
MOTOR:
Bosch Performance Smart System; 75nm; Class 1, max speed 20 mph (US)
BATTERY:
Bosch PowerPack 545
DISPLAY:
LED Remote + Bosch Intuvia 100, 4 mode selectable, walk assist; eBike Flow app
ESTIMATED RANGE:
51 -121 km (32 – 76mi)
CHAINGUARD:
Tern Chain Cover
KICKSTAND:
Ursus, rear mount
FRONT LIGHT:
Tern Valo 2.1, 45 lux/190 lumens
REAR LIGHT:
Herrmans H-Trace, for eBike
FRAME:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
FORK:
Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 180 kg
HANDLEPOST:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
STEM:
Tern Andros (G2), adjustable, forged construction, patented technology
HEADSET:
Tern Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Tern Sweep, 6061-AL, Tern  Andros adapted
GRIPS/BAR TAPE:
Ergon
SEATPOST:
Tern Telescope, 34.9/30.9 mm, 2014-AL
FRONT BRAKE:
Shimano, hydraulic disc, 180 mm rotor
REAR BRAKE:
Shimano, hydraulic disc, 160 mm rotor
FRONT WHEEL:
Tern Atlas H, cargo wheel, Novatec Hub, Thru-axle, sealed bearings, Tern Atlas H Rim 35 mm, Stainless Spokes
REAR WHEEL:
Tern Atlas H, cargo wheel, Shimano Nexus Inter 5E, Tern Atlas H Rim 35 mm, Stainless Spokes
TIRES:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
SHIFTER:
Nexus 5E
REAR HUB GEARS
Shimano Alivio Shadow
BELT:
Gates Carbon Drive CDX
PEDALS:
Urban with non-slip surface
FENDERS:
SKS, stainless hardware
RACK(S):
Atlas H rack, Atlas Rack Mount, 6 point mounting – 176 lb rating
FRAMELOCK:
ABUS Frame / Cafe Lock, keyed-alike with Bosch battery
Bell Included

Call Us for Details:

831-621-2309

Contact Us by Email
