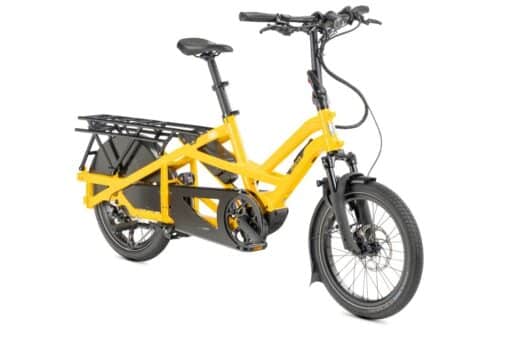

Tern GSD Gen3 P10 Electric Cargo Bike

$4,999.00



The Tern GSD Gen3 offers further refinement to one of our best-selling and easiest to ride Cargo eBikes. The third generation of the amazingly innovative electric Family / Cargo Bike that is easier to rider and fits in places most other cargo bikes cannot.

The Bosch electric drive powered GSD is designed to carry two kids, a week’s worth of groceries, or a total of 400+ lbs of cargo and rider(s), but it’s the same length as a typical bike. With Tern’s best-in-class folding technology, it packs down small enough to fit in a small SUV, a conventional sized vehicle rack, or an urban apartment. Plus, it adjusts to fit riders from 4′ 11″ to 6′ 4″—so mom, dad and the kids can all share it.

Now with an even stronger frame, higher capacity, and upgraded kickstand

*note: P-Series GSD Gen3 use Bosch System 2. Only S-Series GSD Gen3 uses newer Bosch Smart System

  • Super capable, stable and easy to ride and a great selection of accessories (racks, bags, seats, etc.)
  • Up to 80+ miles of range (with dual batteries)
  • 463 Lbs GVW capacity
  • Up to two child seats, or one child seat and a seatpad for another rider
  • Strong Magura hydraulic disc brakes
  • Smaller 20″ Wheel / Tires lower the center of gravity for easier handling with passengers / cargo
  • Strongest Bosch Gen4 Cargo Line electric drive system
  • Updated bike geometry fits wider range of riders, offers a low step-thru and improved ergonomics
  • Included suspension fork for more ride comfort
  • Battery and Cafe Lock are keyed alike
  • New aluminum fenders
  • Full coverage chain / belt guard protects your clothes
  • Brake light for added safety
  • Upgraded heavy duty Atlas kick stand w/remote – wider for more stability
  • Now works with folding Stow Decks
  • Included Wheel Guards improves safety
  • Included Abus Cafe/Frame lock





Please Call for Details:

831-621-2309

Contact Us by Email



The Current eBikes Difference:

Caring for you differently than an internet discounter or big chain…

Current-eBikes-Difference

Categories: , Tags: , , , , , , , , , ,

Description

RIDER HEIGHT – HIGHLY ADJUSTABLE
150 – 195 cm (4’11” – 6’5”)

FRAME
Tern GSD, 7005-Al, patented MultiTruss design

FORK
Tern GSD, 1.5” Taper, Boost Thru-axle, 110 mm, 6061-AL

MOTOR
Bosch Cargo Line – Class1 – Max speed 20 mph (US)

BATTERY
Bosch Dual Battery system.  Single 500Wh or (optional) Dual w 1,000Wh

RANGE
500 Wh: 40-102 km (25-63 mi); 1000 Wh: 82-207 km (51-129 mi)

DISPLAY
Bosch Purion, 4 mode selectable, walk assist

SPEEDS
1 x 10 Shimano Deore shifting

FRONT & REAR BRAKE
Magura MT5, 4-piston hydraulic disc, 180 mm rotor

WEIGHT
Aprox 76 lbs w/ 1 battery

HANDLEPOST ( Folds to ease storage & Transport )
Tern Physis 3D (G2), 3D forged, 5 patented technologies

STEM
Tern Andros (G2), adjustable, forged construction, patented technology

HEADSET
Tern Flux Pro Taper, 1.5”, angular contact bearings, Physis integrated

HANDLEBAR
Tern Sweep, 27 degrees, 6061-Al, Tern Andros adapted

GRIPS
Ergon, for swept bar

SADDLE
Tern GSD, with rear handle

SEATPOST
Tern Telescope, 34.9 mm, 2014-Al

FRONT & REAR WHEEL
20″ Tern Atlas, ultra wide 36 mm, dual reinforced heavy duty cargo wheel, Tern ATLAS Boost front hub, 13G Spokes

TIRES
Custom Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

SHIFTER
Shimano Deore 10 speed

CRANKSET
Tern GSD custom, forged 6061-AL DH crankarm + Custom Chainguard

CHAIN
KMC 10 spd, for eBike, EPT corrosion resistant coating

SHIFTER CABLE & HOUSING
Jagwire LEX-SL, slick treatment, alloy ferrules

KICKSTAND
Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology

FRONT LIGHT
Ignis Headlight, Ultra wide low beam

REAR LIGHT
RearStop Brake Light, Always on

FENDERS
SplashGuard, stainless hardware

RACK
Atlas G – 100 kg ( 220 lbs ) capacity

FRAME LOCK
Abus Cafe/Frame Lock included (optional extension chain available)

PEDALS
Urban with non-slip surface, sealed bearings

BELL
Brass
