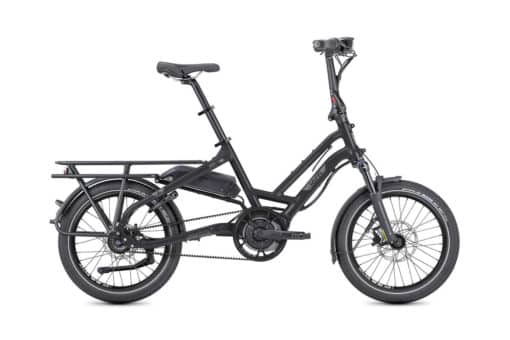

Tern HSD S8i – Belt Drive Electric Bike

$4,099.00

IN STOCK:  Tern HSD S8i.  The Tern HSD S8i offers upgraded components and a simpler maintenance schedule – thanks to it’s Gates Belt Drive (no greasy chain) and Shimano Nexus internally geared hub.

The HSD is mighty but mini: It’s easy to handle, easy to share, extremely comfortable to ride, carries a whole lot of cargo—and all of this in a compact design that’s shorter than a standard bicycle.

Despite its diminutive stature, the HSD is a mid-sized cargo bike with some serious hauling capacity. With a maximum gross vehicle weight of 170 kg (374 lb) and an XL-sized Atlas H Rack, it’ll carry a week’s worth of groceries or camping equipment for the weekend. It even has a dedicated trailer mount, so adding extra cargo is a cinch.

The mid-range HSD 8si minimizes maintenance thanks to the Gates Belt Drive and Shimano internally geared hub. Brakes by Magura mean effortless stopping power. Tackle all your errands and escapades with a Bosch Active Line Plus motor on the versatile HSD.

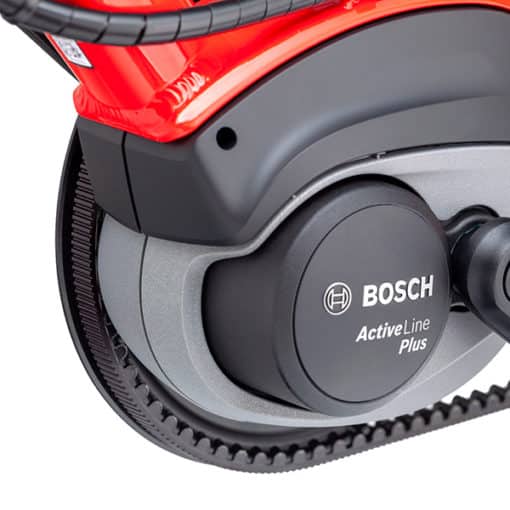

  • Strong and smooth Bosch® Active Line Plus motor
  • 400 Wh battery for a range of up to 110 km (69 mi)

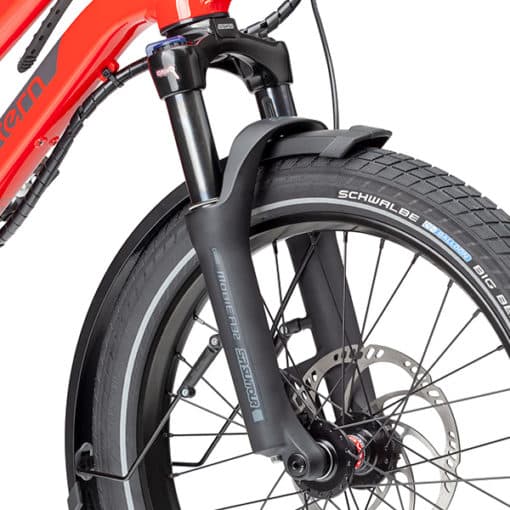

  • Custom Suntour suspension fork
  • Shimano® Nexus 8 speed internal-gear hub
  • Magura® MT4 hydraulic disc brakes
  • Low maintenance Gates Carbon Drive® CDX belt
  • Abus® keyed-alike frame lock
  • Fits riders from 150 to 195 cm (4’11” – 6’5”)
  • Fits one Thule® Yepp Maxi or Yepp Nexxt Maxi child seat—no adapters needed]



Please Call for Details:

831-621-2309

Contact Us by Email



The Current eBikes Difference:

Caring for you differently than an internet discounter or big chain…

Current-eBikes-Difference

Description

AVAILABLE COLORS:
Tundra, Matte Black
WHEEL SIZE:
20″ wheels
SUGGESTED RIDER HEIGHT:
150 – 195 cm (4’11” – 6’5″)
MAX GROSS VEHICLE WEIGHT:
170 kg (374 lbs)
MAX RIDER WEIGHT:
120 kg. (264 lbs.)
MOTOR:
Bosch Active Line Plus (Gen 3), Class 1, max speed 20 mph (US)
BATTERY:
Bosch PowerPack 400
DISPLAY:
Bosch Purion, 4 mode selectable, walk assist
ESTIMATED RANGE:
42 -110 km (26-69 mi)
FRONT LIGHT:
Tern Valo 2.1, 45 lux/190 lumens
REAR LIGHT:
Herrmans H-Trace, for eBike
FRAME:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg
FORK:
Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg
HANDLEPOST:
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
STEM:
Tern Andros (G2), adjustable, forged construction, patented technology
HEADSET:
Tern Flux Pro Taper, 1.5″, angular contact bearings, Physis integrated
HANDLEBAR:
Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Ergon
SEATPOST:
Tern Telescope, 34.9/30.9 mm, 2014-AL
FRONT BRAKE:
Magura MT4, hydraulic disc, 180 mm rotor
REAR BRAKE:
Magura MT4, hydraulic disc, 160 mm rotor
FRONT WHEEL:
Tern Atlas H, cargo wheel, Novatec Hub, Thru-axle, sealed bearings, Tern Atlas H Rim 35 mm, Stainless Spokes
REAR WHEEL:
Tern Atlas H, cargo wheel, Shimano Nexus 8 135mm, Tern Atlas H Rim 35 mm, Stainless Spokes
TIRES:
Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
SHIFTER:
Shimano Nexus 8
CRANKSET:
Tern HSD custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL:
Gates CDX, precision CNC machined cog
CHAIN:
Gates Carbon Drive CDX belt
PEDALS:
Urban with non-slip surface
CHAINGUARD:
Gates integrated
KICKSTAND:
Ursus, rear mount

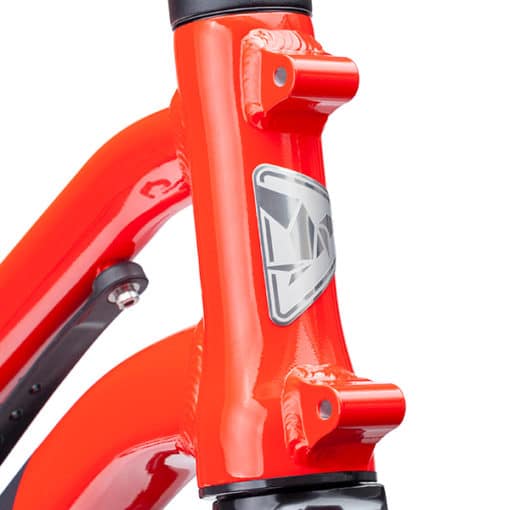

LUGGAGE SOCKET:
Combo Mount
FENDERS:
SKS, stainless hardware
RACK(S):
Atlas H rack, Atlas Rack Mount, 6 point mounting
ACCESSORY:
ABUS 5650L, keyed-alike with Bosch battery
Bell Included
